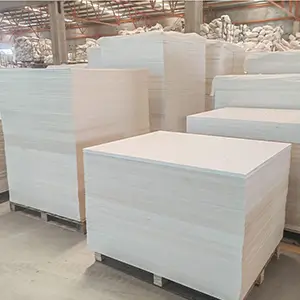

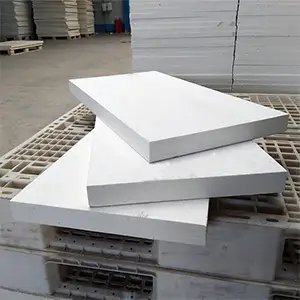

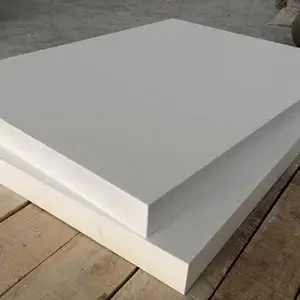

Ceramic Fiber Board

Ceramic Fiber Board

1.Low Heat Loss and Storage,
2.Resistant to Non-Ferrous Metals,
3.Excellent resistance to thermal shock and chemical attack,
4.Resists oxidation and reduction,
5.High mechanical strength at high temperature.

  Description

Ceramic Fiber Board Introduce

Ceramic Fiber Board is manufactured and designed for the thermal applications requesting high demands on rigidity, the thermal insulation properties and abrasion resistance of ceramic fiber board have been further improved due to the higher density. Ceramic fiber board is a vacuum formed product that resists higher gas velocities than ceramic fiber blanket. It is ideal for furnace, boiler duct and stack lining thanks to its thermal conductivity and low heat storage, which makes the shorter cycle times and quicker access for maintenance in the industrial furnaces possible.

  Technical Data:

Ceramic Fiber Board Technical Data

Type COM ST HP HA Zir-Alu HZ
Classified Temp. 1100℃
(1983℉)
1260℃
(2300℉)
1260℃
(2300℉)
1360℃
(2480℉)
1400℃
(2550℉)
1430℃
(2600℉)
Working Temp. <1000℃
(2012℉)
1050℃
(1922℉)
1100℃
(2012℉)
1200℃
(2192℉)
1200℃
(1192℉)
1350℃
(2462℉)
Color white white white white white white
Density(kg/m3) 260-320
(16-20lb/ft3)
260-320
(16-20lb/ft3)
260-320
(16-20lb/ft3)
260-320
(16-20lb/ft3)
260-320
(16-20lb/ft3)
260-320
(16-20lb/ft3)
Linear Shrinkage (%)
(24 hrs)
-3
(1000℃/1832℉)
-3
(1000℃/1832℉)
-3
(1100℃/2012℉)
-3
(1250℃/2282℉)
-3
(1000℃/2012℉)
-3
(1350℃/2462℉)
Thermal conductivity
(W/M.K)
0.085
(400℃/752℉)
0.132
(800℃/1472℉)
0.180
(1000℃/2012℉)
0.085
(400℃/752℉)
0.132
(800℃/1472℉)
0.180
(1000℃/2012℉)
0.085
(400℃/752℉)
0.132
(800℃/1472℉)
0.180
(1000℃/2012℉)
0.085
(400℃/752℉)
0.132
(800℃/1472℉)
0.180
(1000℃/2012℉)
0.085
(400℃/752℉)
0.132
(800℃/1472℉)
0.180
(1000℃/2012℉)
0.085
(400℃/752℉)
0.132
(800℃/1472℉)
0.180
(1000℃/2012℉)
Compression Strength
(Mpa)
0.5 0.5 0.5 0.5 0.5 0.5


 Chemical(%)

Al2O3 44 46 47-49 52-55 45-46 39-40
Al2O3+SiO2 96 97 99 99 - -
Al2O3+SiO2+ZrO2 - - - -   99
ZrO2 - - - - .5-7 15-17
Fe2O3 <1.2 <1.0 0.2 0.2 0.2 0.2
Na2O+K2O ≤0.5 ≤0.5 0.2 0.2 0.2 0.2
Size(mm) 1200*1000mm(47″*40″); 1000*600mm(40″*36″);900*600mm(24″*36″)
20-50mm(1″/2″)thickness

  Application:

Application of Ceramic Fiber Board

.Refractory lining for industrial furnaces.
.Combustion chamber liner, boiler and heaters.
.Transfer of non-ferrous metals.
.Expansion joint boards.
.Barrier against flame.
